Fully automatic Zee purline rolling forming machine
Fully automatic Zee purline rolling forming machine
Fully automatic Zee purline rolling forming machine
Fully automatic Zee purline rolling forming machine
Fully automatic Zee purline rolling forming machine

Fully automatic Zee purline rolling forming machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

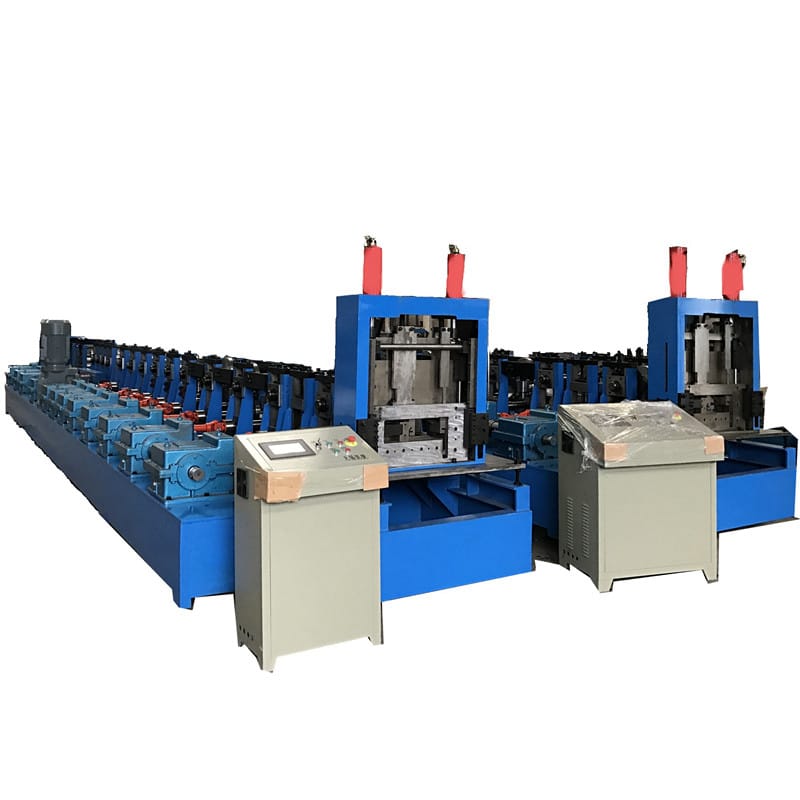

Fully automatic Zee purline rolling forming machine

Fully automatic Zee purline rolling forming machine is professionally designed to make the Z purline in batch. It allows to do online punching, online punching logos.

It composed by the following elements: decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table.

Take the following drawing profile for example:

1



Z purline machine working process:

DecoilerFeeding material into machine Roll Forming Machine Measure length Hydraulic cutting Finished Products

2



Zee purline rolling forming machine:

3



Fully Automatic Changed Z Shape Purlin Roll Forming Machine

Main Technic Parameter:

Size

7800*1500*1600mm

Weight

9000KGS

Voltage

380V/60HZ/3PH

Hydraulic Motor Power

22KW

Motor Power for auto adjustment size

0.37KW*2+0.75KW

Motor Power for auto guide device

0.18KW*2

Motor Power for auto adjustable

hole distance device

0.18KW*2

Forming Steps

13steps+3steps for reshaping

Forming Speed

15m/min

Edge for Z purline

15-25mm

Height of Z Purline

30-70mm

Width of Z Purline

100mm-300mm

Forming Thickness

1.0-3.0mm

Tolerance for cutting

±2.0mm

Tolerance for Forming

±2.0mm

Straightness

2mm/m

Material for All Roller

Gcr15 steel with heat treatment

Material of principal axis

High grade 45# forged steel

Sprocket wheel

45# steel high-frequencies quench

Cut-off system

Hydraulic cutting device

Material for Blade

Cr12 mold steel with quenched treatment 60-62°C

Material for frame of machine

Fine welded structural steel;

Material for producing the

Z Purline

GI Steel with Min.420 Mpa ( JIS G 3302 SGC440

OR EN 10346 S350GD )

Painted Color

Red or Customization

Main Accessories:

(1) Main Purline Forming Machine;

(2) 5 Tons Manual Uncoiler ;

(3) Automatic Guide Device;

(4) Hydraulic Motor System;

(5)PLC Computer Controlling System With Touch Screen ;

(6) Automatic Adjustable Hole Distance Device;

(7) Hydraulic Pre-punching Holes Device;

(8) Hydraulic Pre-cutting Device

(9) Reshaping Device;

(10) Rib Rollers;

(11) Run Out Table(10 pcs);

(12) Tools;

(13) Operation Manual,drawing for changing parts

(14) Free supply 10pcs bearing, 1.5m chain, 10pcs chain connection pins;

(15) Operation Manual.

Here is the Z purline using manual in working status.

4

FAQ:

1.Does one Fully automatic Zee purline rolling forming machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Fully automatic Zee purline rolling forming machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
